ARDEX UI 740™ FLEXBONE®
Uncoupling Membrane

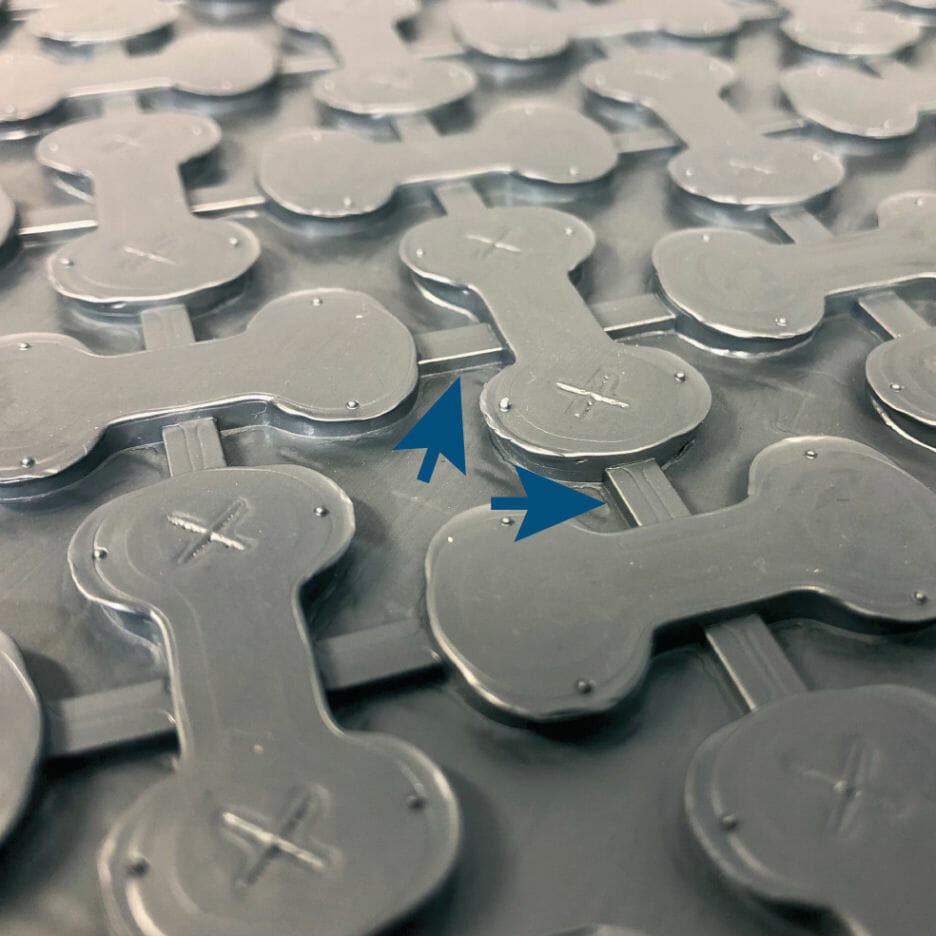

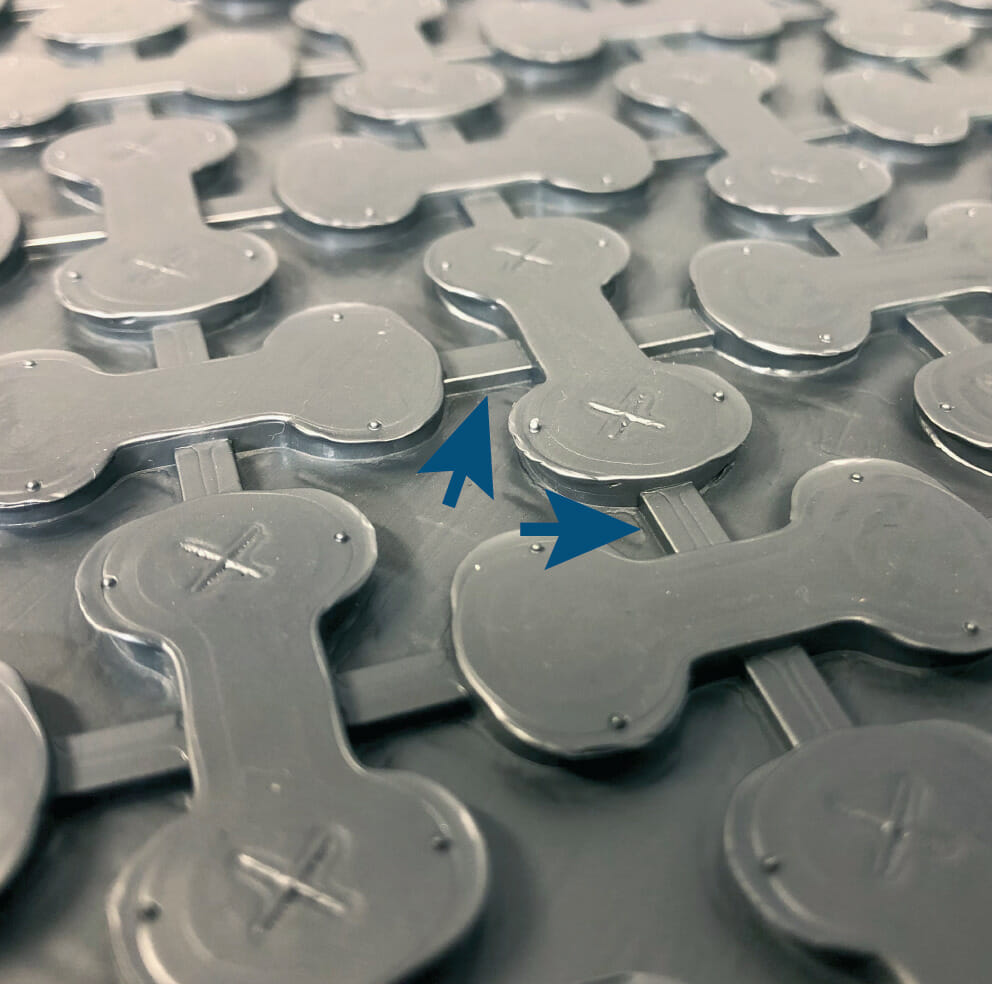

- PRODUCT ENHANCEMENT: Now with added ventilation channels!
- Prefill is just one pass
- Maximum shear movement protection
Information ARDEX UI 740™ FLEXBONE®
ARDEX UI 740™ FLEXBONE® Uncoupling Membrane is a high load-bearing uncoupling membrane ideal for large format tile in high traffic areas. The unique bone-shaped pattern with GripLock Technology delivers outstanding tensile bond strength. The system helps neutralize underlying substrate movement and supports and distributes heavy loads from above. Special high-performance felt helps provide vapor equalization. ARDEX UI 740 FLEXBONE can be used as a waterproof layer in bathrooms and wet areas.
Key Features
- PRODUCT ENHANCEMENT: Now with added ventilation channels
- Prefill with just one pass
- High load-bearing uncoupling membrane
- Ideal for large format tile and stone in heavy traffic areas
- For use with porcelain, ceramic, quarry and natural stone tiles
- Helps prevent grout joint and tile damage from substrate movement
- Higher shear and tensile bond strengths than comparable uncoupling membranes (independent tests at MPA Wiesbaden, Germany)
- Suitable as a waterproofing membrane
- For use in high stress areas, such as shopping malls, airports, office buildings, hospitals, etc.
- For use over wooden or concrete substrates
- Can be prefilled with ARDEX Liquid BackerBoard® Self-Leveling Underlayment
Standards
SystemOne
Technical Data ARDEX UI 740™ FLEXBONE®
Size and Coverage Available
1/8″ (3 mm) Uncoupling Mat – 39″ wide x 65.6′ long (1 m wide x 20 m long) roll
Coverage of 215 sq. ft. (20 sq. m) per roll
1/8” (3 mm) Uncoupling Mat – 39” wide x 16.4’ long (1 m wide x 5 m long) roll
Coverage of 54 sq. ft. (5 sq. m) per roll
Warranty: ARDEX L.P. Standard Limited Warranty applies.
For complete product technical information, click on the Downloads tab and open the Technical Data download.
Downloads ARDEX UI 740™ FLEXBONE®
BIM OBJECTS ARDEX UI 740™ FLEXBONE®
Calculator ARDEX UI 740™ FLEXBONE®
Contact Us
Questions? Please fill out the form below to contact us with any of your questions or concerns. We look forward to hearing from you, and we’ll be in touch shortly.
"*" indicates required fields
Information ARDEX UI 740™ FLEXBONE®
ARDEX UI 740™ FLEXBONE® Uncoupling Membrane is a high load-bearing uncoupling membrane ideal for large format tile in high traffic areas. The unique bone-shaped pattern with GripLock Technology delivers outstanding tensile bond strength. The system helps neutralize underlying substrate movement and supports and distributes heavy loads from above. Special high-performance felt helps provide vapor equalization. ARDEX UI 740 FLEXBONE can be used as a waterproof layer in bathrooms and wet areas.
Key Features
- PRODUCT ENHANCEMENT: Now with added ventilation channels
- Prefill with just one pass
- High load-bearing uncoupling membrane
- Ideal for large format tile and stone in heavy traffic areas
- For use with porcelain, ceramic, quarry and natural stone tiles
- Helps prevent grout joint and tile damage from substrate movement
- Higher shear and tensile bond strengths than comparable uncoupling membranes (independent tests at MPA Wiesbaden, Germany)
- Suitable as a waterproofing membrane
- For use in high stress areas, such as shopping malls, airports, office buildings, hospitals, etc.
- For use over wooden or concrete substrates
- Can be prefilled with ARDEX Liquid BackerBoard® Self-Leveling Underlayment
Standards
SystemOne
Technical Data ARDEX UI 740™ FLEXBONE®
Size and Coverage Available
1/8″ (3 mm) Uncoupling Mat – 39″ wide x 65.6′ long (1 m wide x 20 m long) roll
Coverage of 215 sq. ft. (20 sq. m) per roll
1/8” (3 mm) Uncoupling Mat – 39” wide x 16.4’ long (1 m wide x 5 m long) roll
Coverage of 54 sq. ft. (5 sq. m) per roll
Warranty: ARDEX L.P. Standard Limited Warranty applies.
For complete product technical information, click on the Downloads tab and open the Technical Data download.
Downloads ARDEX UI 740™ FLEXBONE®
BIM OBJECTS ARDEX UI 740™ FLEXBONE®
Calculator ARDEX UI 740™ FLEXBONE®
Contact Us
Questions? Please fill out the form below to contact us with any of your questions or concerns. We look forward to hearing from you, and we’ll be in touch shortly.
"*" indicates required fields
