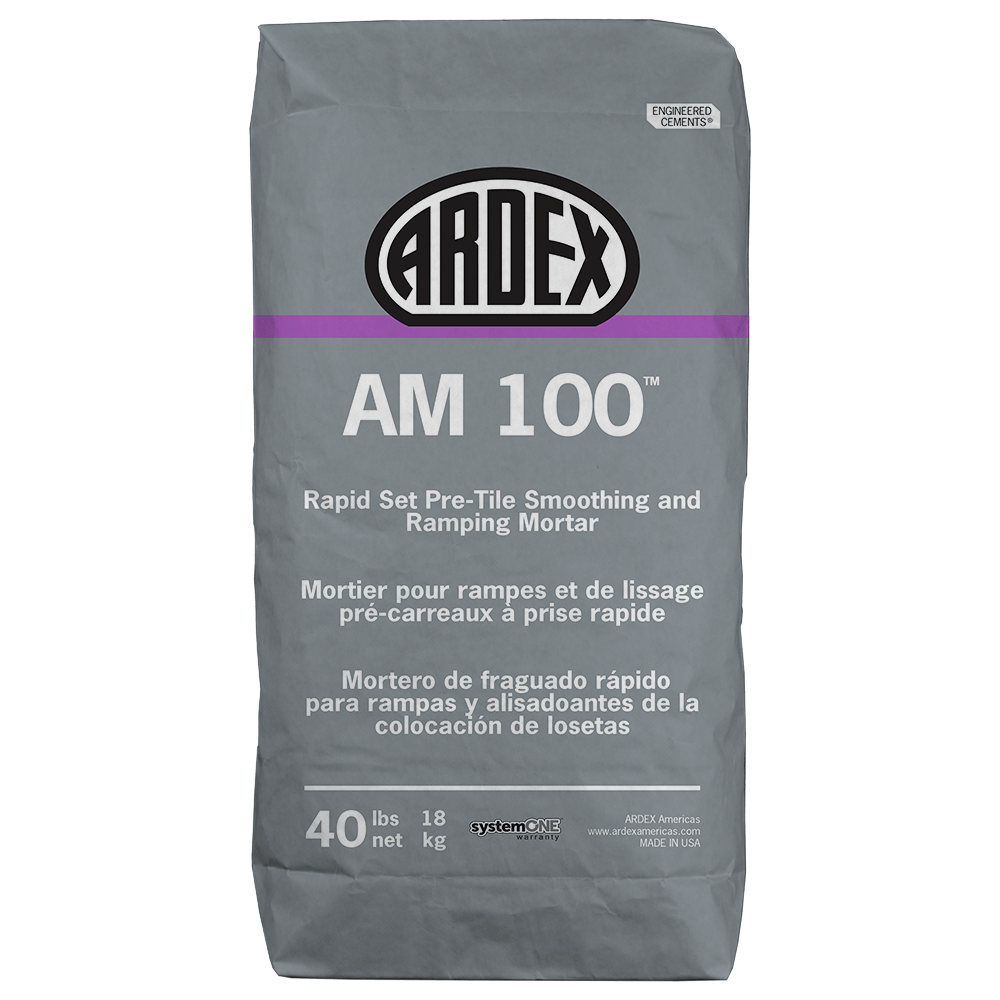

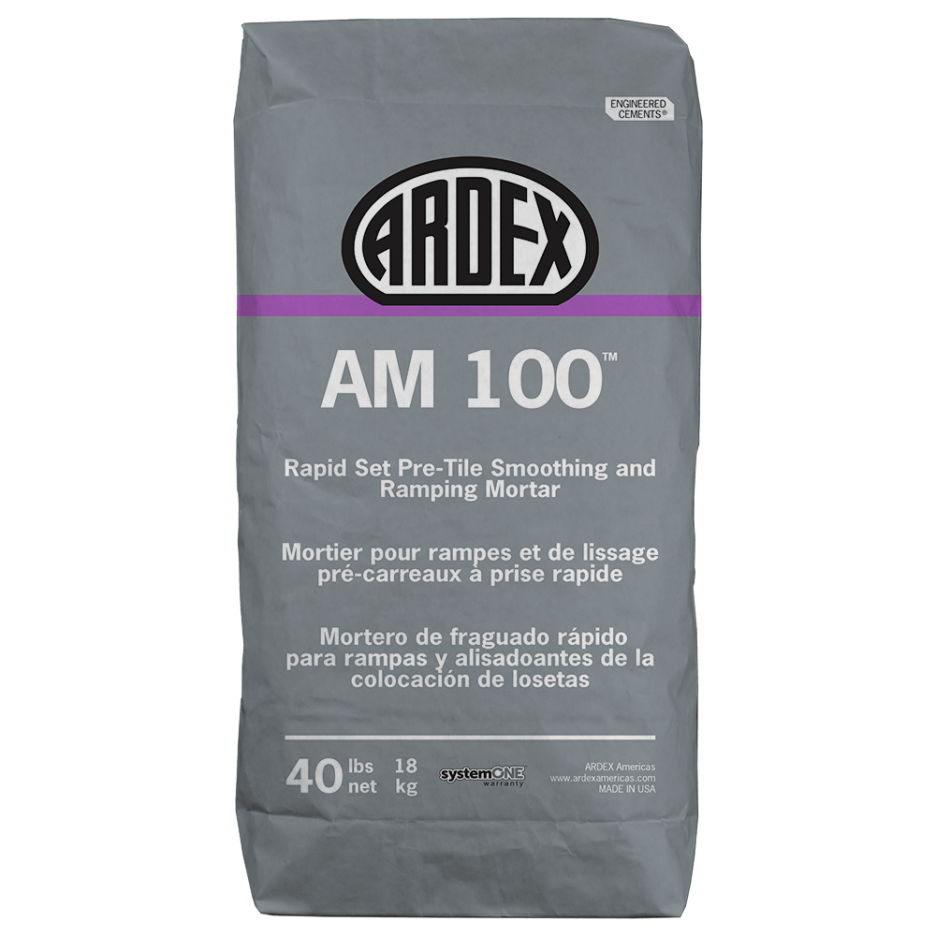

ARDEX AM 100™

Pre-Tile Ramping and Smoothing Mortar

  • Install tile in just 2 hours
  • No sag or slump
  • 1/4" (6 mm) to 1 1/4" (32 mm) in just one lift
Images and Videos

Information ARDEX AM 100™

ARDEX AM 100™ is a unique smoothing and ramping mortar for vertical and horizontal concrete and masonry surfaces that significantly reduces the preparation time prior to the installation of all types of tile and stone. It can also be used to slope balconies and create slope to drains. ARDEX AM 100 is ideal for fast-track tiling applications in wet areas for the smoothing of swimming pools,showers, fountains and below-grade installations, such as subway stations.

Key Features

  • Smooth concrete and masonry surfaces prior to tiling
  • Install tile in just 2 hours
  • Very easy to use: creamy and smooth, mix with water only
  • Water and frost resistant
  • Place from 1/4″ to 1 1/4″ in one coat
  • Use to smooth walls and floors
  • Especially suited for re-sloping balconies and sloping to drains
  • Interior and exterior
  • No sag or slump
  • Excellent bond strength
  • Ideal for swimming pools, for smoothing of walls in underground transportation areas and other wet or damp areas

Standards

SystemOne

Technical Data ARDEX AM 100™

Installation

Mixing Ratio:

4 – 4 1/4 quarts (3.75 – 4 L) of water per 40 lb. (18 kg) bag

*For smaller batches, use 3 1/4 parts powder to 1 part water by volume

Coverage:

22.5 sq. ft. per bag at 1/4″ (2 sq. m at 6 mm)

*Coverage will vary depending on the texture of the surface being smoothed

Performance

Initial Set (ASTM C191): Approx. 1 hour
Final Set (ASTM C191): Approx. 2 hours
Install Tile: 2 hours at 70°F (21°C); allow 24 hours for moisture-sensitive stone and waterproofing membranes
VOC: 0
Packaging: 40 lb. (18 kg) net bag weight
Storage: Store in a cool dry area. Do not leave bags exposed to sun. Protect unused material by removing air from bag and sealing tightly.
Shelf Life: 1 year, if unopened
Warranty: ARDEX L.P. Standard Limited Warranty applies
